Electrosurgical Generator + High Frequency Desiccator
The Bovie Bantam | PRO, A952 is a High Frequency Desiccator with cutting ability. You might call it a split personality. One half of the unit is a high frequency desiccator, an upgrade to our very popular Aaron® 940. The other half is a Bovie Generator, giving you 50 watts of cutting power and coag capabilities – plenty of power for most cutting procedure performed in the doctor’s office.
MONOPOLAR
WATTS
VPEAK MAX VOLTAGE
CREST FACTOR (TYPICAL)
FREQUENCY (KHZ)
Cut I
50
1600V
2.2 ± 20%
343kHz ± 10%
Blend
50
2100V
3.5 ± 20%
368 kHz ± 10%
Coagulation
50
2900V
5.2 ± 20%
340 kHz ± 20%
Spray Coagulation
40
6300V
9.5 ± 20%
410 kHz ± 10%
MONOPOLAR
WATTS
VPEAK MAX VOLTAGE
CREST FACTOR (TYPICAL)
FREQUENCY (KHZ)
Bipolar
40
950V
5.5 ± 20%
368kHz ± 10%
Micro Bipolar
40
300V
2.6 ± 20%
338 kHz ± 10%
Technical Specifications:
Lifespan: Reusable
Sterilization Status: Non-sterile
Electrical Specifications:
Line Frequency: 50-60 Hz
Output Frequency: 304-451 kHz
Line Voltage: 100-240 VAC
Cooling System: Passive Cooling
Technology: Isolated RF Output
Monopolar HP Ports: 1 Port(s)
Certifications: CE 0413
Range Trip Point: (10C° to 40°C)
Safety Specifications:
Latex-Free: Yes
Included Items:
SKU
Name
Default Quantity
A952
Electrosurgical Generator + High Frequency Desiccator
The Cut mode gives a general cutting with a standard RF waveform to cut all types of tissue with minimal hemostasis. It generates constant output power over a wide range of impedances.
The Blend Mode is a combination of Cutting and Hemostasis (55/45). The Blended Cutting offers increased control of bleeding at the surgical application site.
The Coagulation Mode provides precise control of bleeding in loca
Overview:
DESIGNED FOR YEARS OF TROUBLE-FREE USE
The Bovie Bantam | PRO A952 is designed and engineered to be the most reliable and durable generator available today. The unit’s life is prolonged by incorporating the latest in chip technology and reducing the number of internal parts, thereby generating less internal heat. Unit cleanup is simplified by its non-absorbing, non-staining, high-impact ABS enclosure.
COMPACT, MOBILE, ELECTROSURGICAL SYSTEM
Standard package includes the unit, power cord, reusable handpiece, non-sterile drapes, 2 sterile drapes, 5 sterile disposable electrodes, 6 disposable sterile dermal tips, 12 disposable non-sterile dermal tips, 2 reusable grounding cord, 5 disposable split grounding pad, wall mount kit and users guide.
BOVIE GENERATOR
50 Watts – Cut, Blend, Coagulation
Isolated Power
THE GENERATOR
Bovie Bantam | PRO A952 is a high frequency desiccator with cutting ability. You might call in a split personality. One half of the unit is a high frequency desiccator, an upgrade to our very popular Aaron® 940. The other half is a Bovie Generator, giving you 50 watts of cutting power and coag capabilities- plenty of power for most cutting procedure performed in the doctor’s office.
THREE MODES OF OPERATION

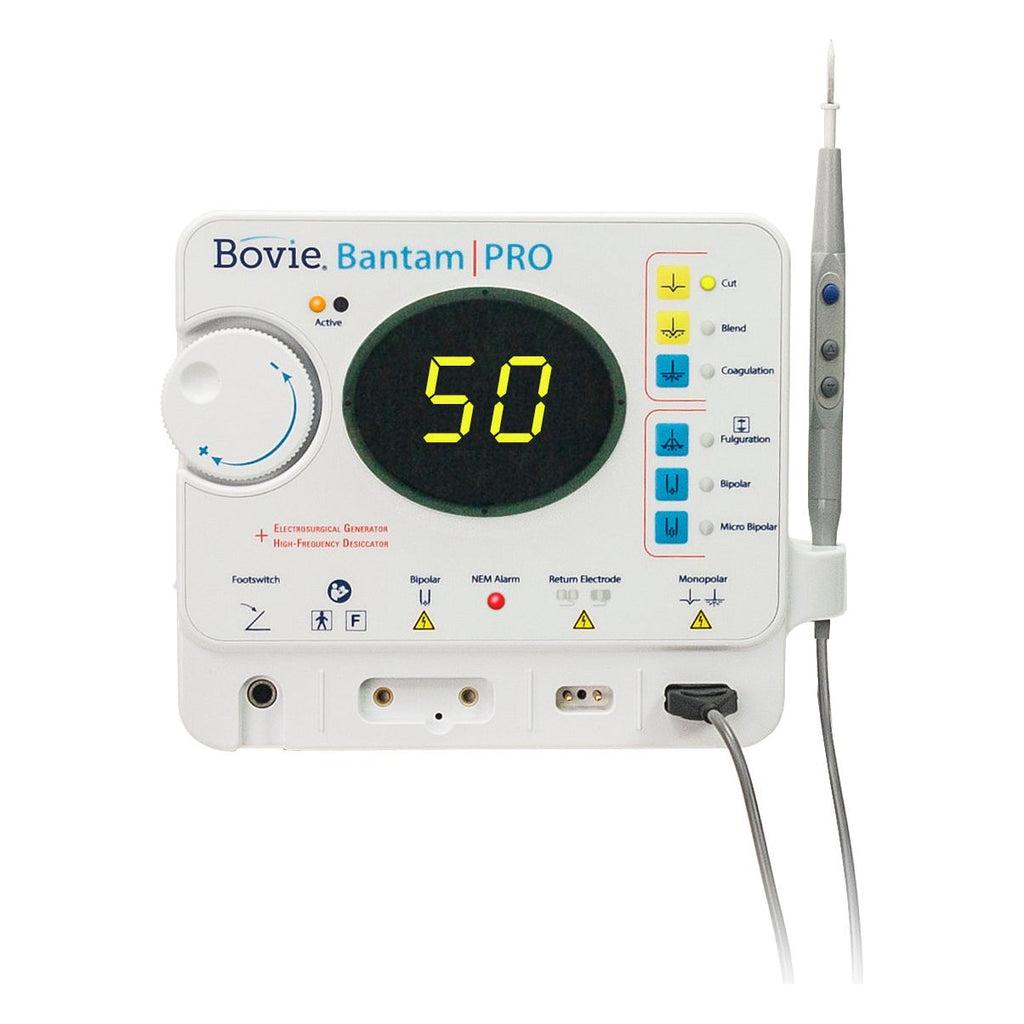

The Bovie Bantam | PRO A952 Generator offers you up to 50 watts in Cut mode, Blended Cut mode, and Pinpoint Coagulation mode. Simplicity is achieved using easy-touch, color-coded membrane pads, and by placing all user controls and outputs on the unit’s compact front panel. The ergonomic arrangement of commonly used operating functions, plus a large, comfortable rotary dial, provide quick operating-mode selections and smooth power control with the option of adjusting the power from the handpiece.
PROCEDURAL CONFIDENCE
Use of the Bovie Bantam | PRO A952 promotes procedural confidence. Our surgical handpiece fits comfortably in your hand and, when not in use, rests conveniently in a holder specifically designed to minimize contact with the unit. The handpiece holder safely isolates the instrument from the medical team, the patient, and the unit.
All industry-standard 3/32″ (0.24 cm) disposable and reusable electrodes fit the A902 handpiece. Handpieces may be autoclaved for greater operating efficiency and maximum cost control.
When in electrosurgical generator mode, the unit features Bovie NEM™ pad sensing technology which monitors the return electrode for optimum patient protection.
Bovie Bantam | PRO A952 post-procedure cleanup is simple (and fast) due to nonabsorbent ABS enclosures, and our use of liquid resistant membrane switches that can be wiped clean with a damp cloth.
HIGH FREQUENCY DESICCATOR
40 Watts – Fulguration
40 Bipolar
40 Micropolar .
1-10 Watts – Adjustable in 1/10 watt increments
THE DESICCATOR
The High Frequency Desiccator is a ground referenced machine that does not require the use of a return pad. It gives you precision Fulguration up to 40 watts and Bipolar power up to 40 watts. All power settings are adjustable in 1/10 watt settings from .1-10 watts.
CHANGE POWER IN ONE STEP, NOT FOUR
The Bovie Bantam | PRO A952 allows the doctor to change the power setting with one action, using the up/down buttons on the autoclavable handpiece or the rotary power-control dial. This saves time and protects the sterile field during sensitive procedures.
FOOT CONTROL ADVANTAGE
To use the foot control feature one simply needs to plug in the optional footswitch. There is no expensive separate handpiece, and the handpiece retains the ability to adjust the power and activate the unit in this mode.
THE BOVIE 3-BUTTON HANDPIECE – BETTER BY DESIGN – INSIDE AND OUT
